Overview​

The OpenEMR module deploys a leading open-source electronic health records (EHR) and medical practice management solution. It is designed for healthcare providers who need a secure, HIPAA-compliant-ready environment to manage patient data, scheduling, and billing.

Key Benefits​

  • Patient Data Sovereignty: Keep full control and ownership of your patient records by hosting them on your own cloud instance.
  • Secure & Compliant: Built on Google Cloud's secure foundation, with encrypted databases and private networking to help meet compliance requirements.
  • High Availability: Ensures patient records are always accessible when needed by clinicians.
  • Disaster Recovery: Integrated backup solutions to protect against data loss.

Functionality​

  • Deploys OpenEMR application.
  • Configures a secure MySQL/MariaDB database.
  • Sets up encrypted storage for patient documents and certificates.
  • Automates certificate management (SSL) for secure web access.

This document provides an analysis of the OpenEMR module. It details the architecture, IAM configurations, service specifications, and available features, along with recommendations for enhancement.

The OpenEMR module deploys a scalable, containerized instance of OpenEMR on Google Cloud Run. It utilizes a wrapper architecture (CloudRunApp) to provision standard infrastructure components while defining OpenEMR-specific configurations. Key architectural decisions include using Cloud SQL for the database, an external NFS server (GCE instance) for shared file storage (sites directory), and Redis for session management (hosted on the same NFS infrastructure).

2. Architecture Overview​

The deployment follows a standard 3-tier web application architecture adapted for serverless containers:

  • Compute: Google Cloud Run (Gen 2) hosting the OpenEMR PHP application (Apache/PHP-FPM).
  • Database: Google Cloud SQL (MySQL 8.0) connected via Private IP or Unix Socket.
  • Storage:
    • Application Code: Immutable container image.
    • Patient Documents/Sites: NFS Volume mounted to /var/www/localhost/htdocs/openemr/sites. This is provided by a GCE instance running an NFS server.
  • Caching/Sessions: Redis, accessed via the internal IP of the NFS infrastructure.
  • Networking: Private VPC connectivity via Direct VPC Egress. Public or Internal Ingress.

3. IAM & Access Control​

The module implements the Principle of Least Privilege through dedicated Service Accounts (SA).

Service Accounts​

  1. Cloud Run Service Account (cloudrun-sa):
    • Identity: Used by the OpenEMR container at runtime.
    • Permissions:
      • roles/secretmanager.secretAccessor: To retrieve OE_PASS (Admin Password) and DB_PASSWORD.
      • roles/storage.objectAdmin: Full control over creating/managing GCS buckets (if create_cloud_storage is true).
      • roles/storage.legacyBucketReader: For listing bucket metadata.
  2. Cloud Build Service Account (cloudbuild-sa) (If CI/CD is enabled):
    • Identity: Used by Cloud Build triggers.
    • Permissions:
      • roles/run.developer: To deploy revisions to Cloud Run.
      • roles/iam.serviceAccountUser: To act as the Cloud Run SA during deployment.
      • roles/secretmanager.secretAccessor: To access the GitHub token.

Network Access​

  • Cloud Run Invoker: By default, roles/run.invoker is granted to allUsers, making the service publicly accessible. This is controlled by the public_access variable but the implementation in service.tf currently defaults to allUsers if configure_environment is true.

4. Service Configuration​

Compute: Cloud Run​

  • Image Source: Custom build based on alpine:3.20 with PHP 8.3 and Apache.
  • Resources:
    • CPU: 2000m (2 vCPU) default.
    • Memory: 4Gi default.
  • Scaling:
    • Min Instances: 1 (Ensures warm start, prevents cold boot latency).
    • Max Instances: 1 (Restricted to 1 by default in openemr.tf, likely due to legacy concurrency concerns or session stickiness, though Redis is configured).
  • Probes:
    • Startup Probe: TCP check on port 80. Initial delay 240s.
    • Liveness Probe: HTTP GET on /interface/login/login.php. Initial delay 300s.

Database: Cloud SQL​

  • Engine: MySQL 8.0.
  • Connection:
    • Primary: Unix Socket (mounted at /cloudsql).
    • Secondary: Internal IP (DB_HOST env var).
    • Credentials: Rotated automatically via Secret Manager (google_secret_manager_secret).

Storage: NFS & Volumes​

  • Mount Point: /var/www/localhost/htdocs/openemr/sites.
  • Source: External GCE Instance (identified via get-nfsserver-info.sh script).
  • Permissions: The startup script (openemr.sh) intentionally skips recursive chown on this directory to prevent Cloud Run startup timeouts, relying on the nfs-init job instead.

Configuration Options (Variables)​

VariableDefaultDescription
nfs_enabledtrueCritical for OpenEMR. Enables the NFS volume mount.
database_typeMYSQL_8_0Required version for OpenEMR compatibility.
environment_variablesMapIncludes PHP_MEMORY_LIMIT (512M), SMTP_* settings.
ingress_settingsallControls visibility (all, internal, internal-and-cloud-load-balancing).
vpc_egress_settingPRIVATE_RANGES_ONLYRoutes private traffic to VPC, public to internet.
backup_sourcegcsSource for automated backup restoration during init (gcs or gdrive).

5. Application Implementation​

Docker Container (scripts/openemr/Dockerfile)​

  • Base: alpine:3.20.
  • Software: Apache2, PHP 8.3 (with FPM), Node.js (for build assets).
  • Build Process: Clones OpenEMR rel-704 from GitHub, runs composer and npm builds, and compiles assets.
  • Security: Runs Apache/PHP as user apache (UID 1000).
  • Logging: Redirects Apache/PHP logs to /dev/stderr and /dev/stdout for Cloud Logging compatibility.

Startup Logic (scripts/openemr/openemr.sh)​

  • Auto-Configuration: Runs auto_configure.php to set up sqlconf.php if missing.
  • Resiliency: Detects "Cloud Run mode" to skip slow filesystem permission checks (find/chown) on the NFS mount.
  • Session Handling: Configures session.save_handler = redis if REDIS_SERVER is present.
  • Port Binding: Dynamically updates Apache's Listen port based on the $PORT environment variable.

Initialization Jobs (nfs-init)​

  • Purpose: Prepares the shared storage before the app starts.
  • Actions:
    1. Sets ownership of the sites directory to UID 1000.
    2. Downloads a backup file (if BACKUP_FILEID is provided) from GCS or GDrive.
    3. Unzips and restores the backup to the NFS volume.
    4. Regenerates sqlconf.php with the current DB credentials.

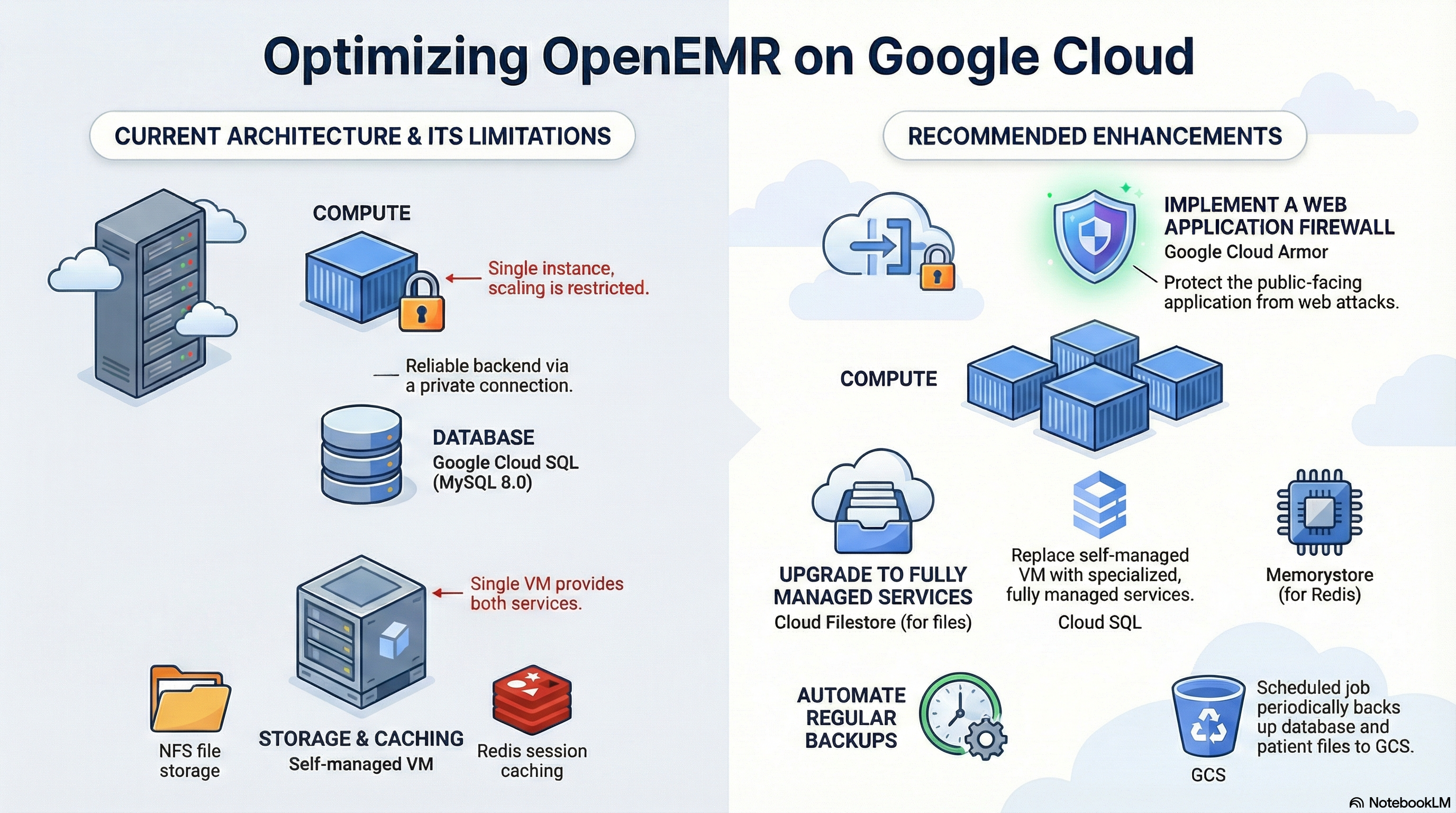

6. Potential Enhancements​

Infrastructure & Architecture​

  1. Separate Redis Service: Migrating to Cloud Memorystore for Redis would improve reliability, manageability, and scalability.
  2. Managed NFS (Filestore): Replacing the GCE-based NFS server with Cloud Filestore (Basic Tier) would remove the burden of managing the storage VM and improve availability.
  3. WAF / Cloud Armor: If ingress_settings is all, the service is exposed directly. Implementing a Global Load Balancer with Cloud Armor is recommended to protect against OWASP Top 10 attacks.

Security​

  1. IAP Integration: Restrict public access by enabling Identity-Aware Proxy (IAP) on the Load Balancer, ensuring only authorized users can reach the login screen.
  2. Secret Rotation: Implement a dedicated job or function to rotate the OE_PASS and DB_PASSWORD periodically and update the OpenEMR config, as currently they are static after creation.
  3. Least Privilege Refinement: Review roles/storage.objectAdmin. If the app only needs to write documents, roles/storage.objectCreator and roles/storage.objectViewer might be sufficient.

Observability & Operations​

  1. Structured Logging: Ensure openemr.conf LogFormat explicitly uses JSON or GCP-compatible text formats for easier parsing in Cloud Logging.
  2. Automated Backups: The current solution supports restore-on-init. A CronJob (Cloud Scheduler + Cloud Run Job) should be added to periodically dump the MySQL database and sites directory to GCS.
  3. Health Check Tuning: The startup_probe delay (240s) is quite long. Optimizing the PHP-FPM startup or auto_configure process could reduce deployment roll-out times.
