Overview​

The Wordpress module deploys the world's most popular Content Management System (CMS) on Google Cloud's modern serverless platform. It is perfect for corporate websites, blogs, and marketing landing pages that need to be fast, secure, and auto-scalable.

Key Benefits​

  • Traffic Spikes? No Problem: Automatically scales up to handle viral traffic or marketing campaigns, and scales down to save money when traffic is low.
  • Fast Performance: Optimized environment for fast page load times, essential for SEO and user experience.
  • Security: Removes the attack surface of traditional servers (no OS to patch).
  • Media Management: Integrates with Cloud Storage to store unlimited images and media files.

Functionality​

  • Deploys WordPress container.
  • Connects to a managed MySQL database.
  • Configures a "Stateless" plugin mechanism (using Cloud Storage) so media uploads work across multiple server instances.

Executive Summary​

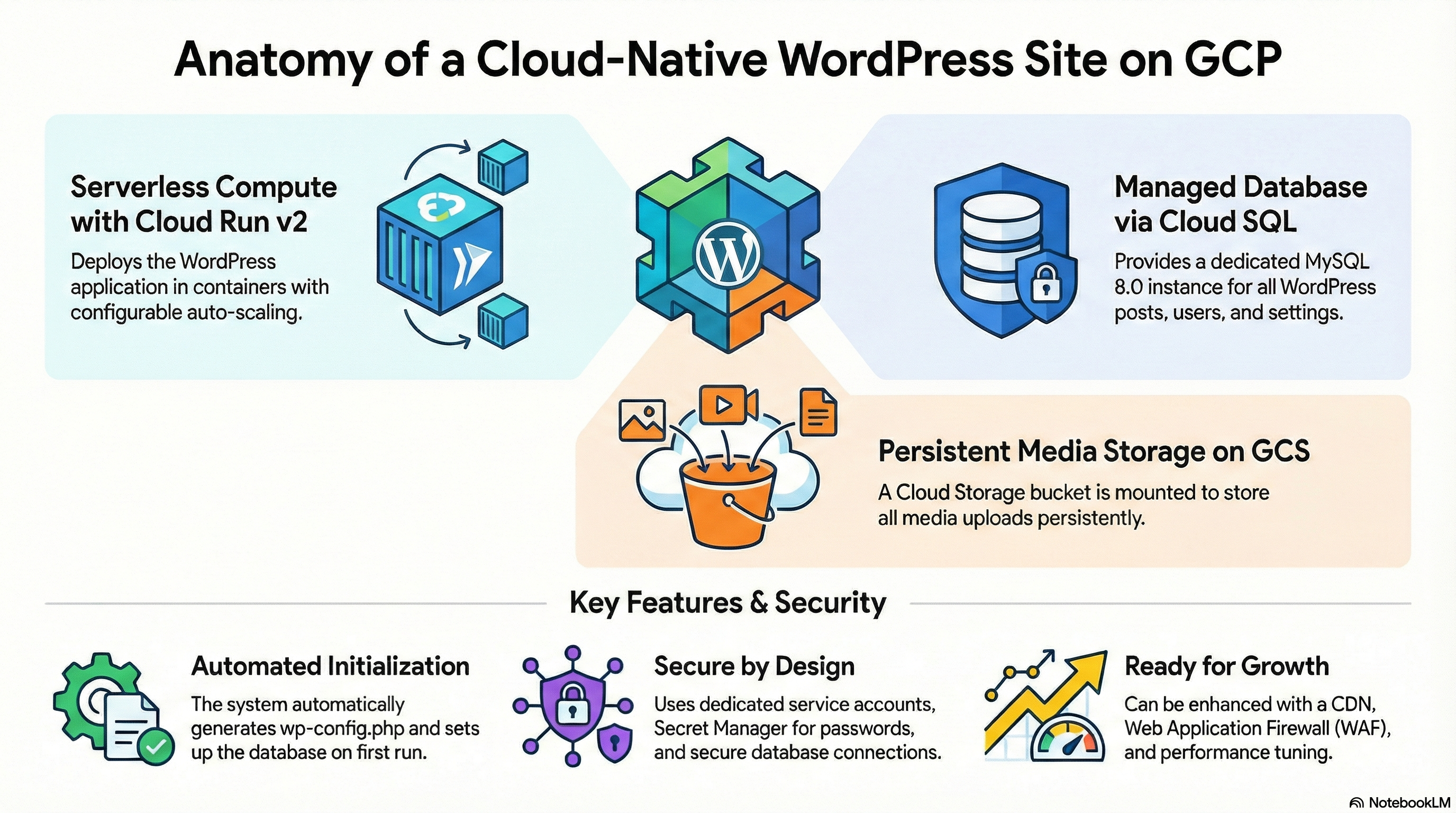

The Wordpress module deploys a scalable, containerized WordPress application on Google Cloud Run (v2), backed by Cloud SQL (MySQL 8.0) and Cloud Storage (GCS) for media assets. It leverages a wrapper architecture around the CloudRunApp module to inherit standardized infrastructure practices while defining application-specific configurations, such as custom Docker builds and initialization jobs.

1. Architecture & Services​

Compute: Cloud Run (Gen 2)​

  • Service: Deploys a Cloud Run v2 service.
  • Scaling: Configurable min/max instances (default 1-3).
  • Execution Environment: Gen 2 (full Linux compatibility).
  • Ingress: Configurable (public, internal, or load-balanced).

Database: Cloud SQL​

  • Engine: MySQL 8.0.
  • Connection:
    • Application: Connects via Unix socket (/cloudsql/<instance>) mounted at /cloudsql.
    • Init Jobs: Connect via TCP (Private IP) to perform schema operations.
  • Provisioning: The module expects an existing Cloud SQL instance (likely provided by a platform module like GCP_Services) and validates it via an external script (sql.tf). It does not provision the instance itself.

Storage: Google Cloud Storage (GCS)​

  • Media Assets: A GCS bucket (wp-uploads) is mounted to /var/www/html/wp-content via GCS FUSE.
  • Behavior: This mount ensures uploads are persistent and shared across instances. The container entrypoint handles populating the bucket with initial theme/plugin data if empty.

CI/CD: Cloud Build​

  • Builds: Supports automated builds triggered by GitHub changes (enable_cicd_trigger).
  • Image: Builds a custom image from php:8.4-apache.

Secrets & Configuration​

  • Secret Manager: Stores sensitive data like WORDPRESS_DB_PASSWORD.
  • Environment Variables: Injected into the container (e.g., WORDPRESS_DB_HOST, WORDPRESS_TABLE_PREFIX).

2. IAM & Access Control​

Service Accounts​

  • Cloud Run SA: A dedicated Service Account is created for the application.
  • Cloud Build SA: Used for CI/CD operations.

Roles & Permissions​

The Cloud Run Service Account is granted:

  • roles/secretmanager.secretAccessor: To access DB credentials and secret env vars.
  • roles/storage.objectAdmin: Full control over the uploads bucket.
  • roles/storage.legacyBucketReader: For bucket metadata access.

Network Security​

  • VPC Access: Direct VPC Egress is configured (PRIVATE_RANGES_ONLY default) to allow connectivity to Cloud SQL and other internal resources.
  • Public Access: By default, roles/run.invoker is granted to allUsers. This can be restricted via public_access = false.

3. Configuration Details​

Container Configuration​

  • Base Image: php:8.4-apache.
  • Extensions: Installs gd, mysqli, imagick, bcmath, intl, zip.
  • Web Server: Apache configured with mod_remoteip to correctly log client IPs behind the Cloud Run load balancer.
  • Entrypoint: docker-entrypoint.sh handles:
    • Waiting for Cloud SQL socket.
    • Generating wp-config.php with unique salts.
    • Initializing wp-content directory structure on the GCS mount.

Application Configuration​

  • Variables: defined in variables.tf.
  • Defaults:
    • memory_limit: 2Gi (container), 128M (PHP default, overrideable).
    • timeout_seconds: 300s.

Initialization​

  • Job: db-init (Alpine-based) runs on apply to create the database and user if they don't exist.
  • Dependency: Waits for the Cloud SQL instance to be available.

4. Existing Features​

  1. Auto-Initialization: Automatically creates the database schema and populates the wp-content directory on first run.
  2. Stateless/Stateful Hybrid: Uses Cloud Run (stateless) with GCS/SQL (stateful) for a true serverless architecture.
  3. Observability: Apache logs are directed to stdout/stderr (Cloud Logging).
  4. Security:
    • Randomly generated salts for wp-config.php.
    • Least-privilege IAM roles for storage and secrets.
    • Cloud SQL Auth Proxy sidecar (integrated in Cloud Run) for secure DB access.

5. Findings & Potential Enhancements​

Enhancements​

  1. PHP Tuning:
    • Tune opcache further based on load.
  2. Email Delivery:
    • Configure SMTP settings (e.g., SendGrid, Mailgun) via environment variables to ensure WordPress can send emails (currently relies on default PHP mail(), which often fails in containers).
  3. CDN Integration:
    • Enable Cloud CDN on the Load Balancer (if using internal-and-cloud-load-balancing) or configure a plugin to offload assets to a CDN.
  4. WAF:
    • Enable Cloud Armor for DDoS protection and WAF rules.
