Overview​

The Sample module acts as a reference implementation for deploying custom web applications on Google Cloud Platform. It demonstrates how to build a production-ready "Wrapper Module" that inherits the platform's best practices while deploying a custom Python Flask application.

Key Benefits​

  • Blueprint for Success: serves as a copy-pasteable template for developers to create their own custom modules.
  • Best Practices: Implements secure networking, secrets management, and IAM according to strict standards.
  • Full Stack Demo: Deploys a complete stack including Compute (Cloud Run), Database (Cloud SQL), and Storage (GCS).

Functionality​

  • Deploys a Python Flask application.
  • Connects to a PostgreSQL database via Unix Sockets.
  • Demonstrates automated database schema initialization using Cloud Run Jobs.
  • Shows how to handle secret injection and environment configuration.

1. Technical Summary​

The Sample module acts as a reference implementation for deploying custom web applications on the Google Cloud Platform (GCP) using the platform's wrapper module architecture. It leverages the foundation CloudRunApp module to deploy a Python Flask application connected to a Cloud SQL PostgreSQL database. It demonstrates best practices for containerization, database initialization, secrets management, and secure networking.

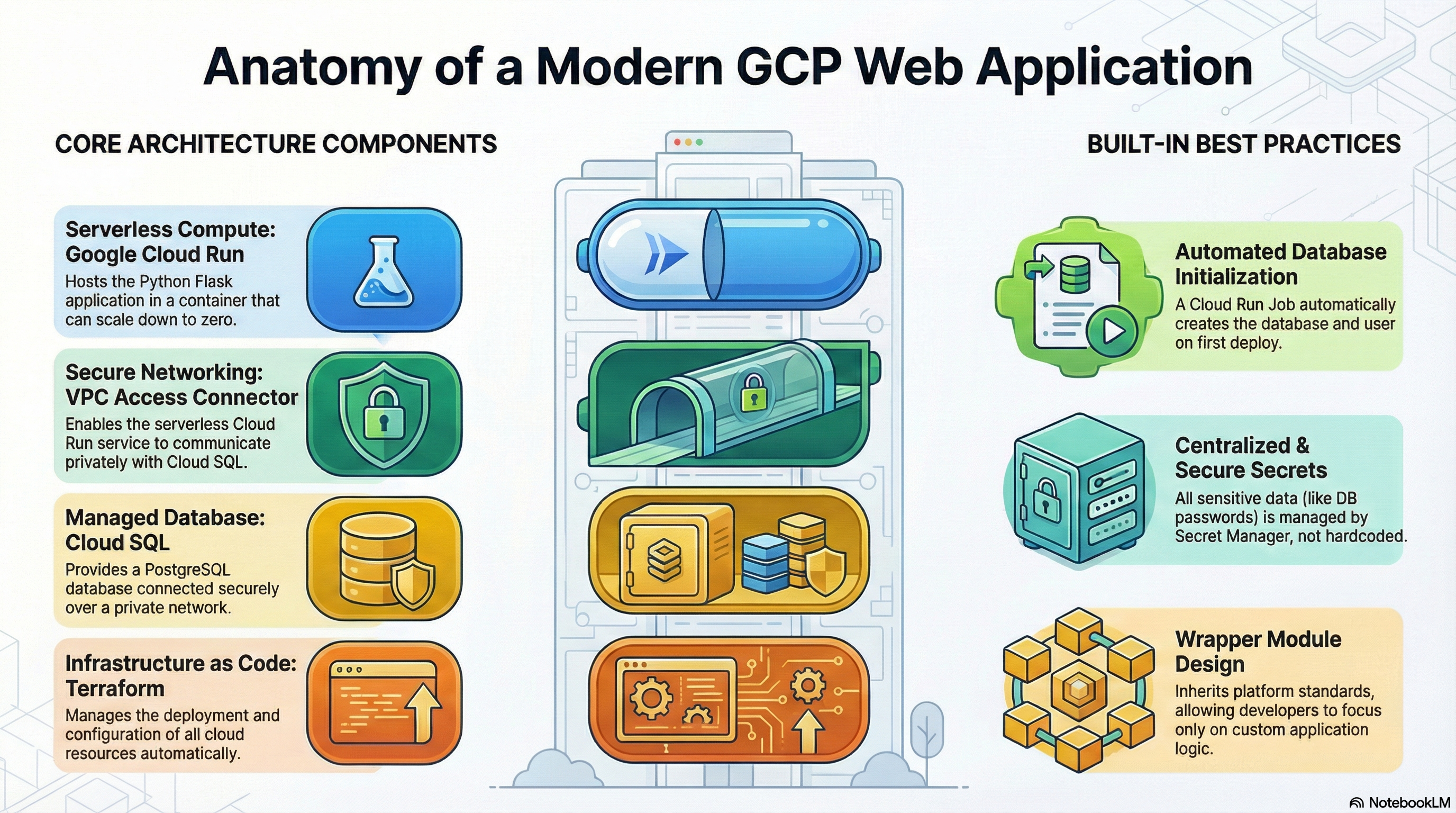

2. Architecture Overview​

The module employs a serverless architecture centered around Cloud Run, utilizing a "Wrapper Module" pattern where Sample inherits infrastructure logic from CloudRunApp via symlinks, defining only its specific configuration in sample.tf and application logic in scripts/sample.

Components:

  • Compute: Google Cloud Run v2 Service (Serverless container).
  • Database: Cloud SQL (PostgreSQL), connected via private IP or Unix Socket.
  • Networking: Serverless VPC Access Connector for private network access.
  • Configuration: Terraform for infrastructure; Docker for application runtime.
  • Initialization: Cloud Run Job for database schema and user creation.

3. IAM and Access Control​

Identity and Access Management (IAM) is handled primarily through Service Accounts (SA) and Role-Based Access Control (RBAC).

3.1. Service Accounts​

  • Cloud Run Service Account (cloud_run_sa):
    • Identity: Runs the application container and initialization jobs.
    • Creation: Can be auto-created by the module or supplied externally via variable.
    • Permissions:
      • roles/secretmanager.secretAccessor: Access to DB passwords and env vars.
      • roles/storage.objectAdmin: Access to GCS buckets (if configured).
      • roles/storage.legacyBucketReader: For metadata access (e.g., django-storages).
  • Cloud Build Service Account (cloud_build_sa):
    • Identity: Executes CI/CD pipelines and custom builds.
    • Permissions:
      • roles/run.developer: To deploy the service.
      • roles/iam.serviceAccountUser: To act as the Cloud Run SA.
      • roles/secretmanager.secretAccessor: Access to GitHub tokens.

3.2. Access Policies​

  • Public Access: The module defaults to public access (roles/run.invoker granted to allUsers).
  • Internal Access: Can be restricted by removing the allUsers binding in service.tf (requires modification or overriding service_annotations to set ingress to internal).

4. Service Implementation & Configuration​

4.1. Cloud Run Service (service.tf)​

The core service is a Cloud Run v2 service.

  • Container Image: Builds from scripts/sample/Dockerfile (Python 3.11-slim) or uses a pre-built image.
  • Resources:
    • CPU: 1000m (1 vCPU).
    • Memory: 512Mi (Configurable).
    • CPU Boost: Enabled for faster startup.
  • Scaling:
    • min_instance_count: 0 (Scales to zero).
    • max_instance_count: 1 (Limits concurrency).
  • Networking:
    • Ingress: INGRESS_TRAFFIC_ALL (Public).
    • VPC Egress: Configured via vpc_access block to route traffic to Cloud SQL.
  • Probes:
    • Startup Probe: Checks /healthz to confirm app startup.
    • Liveness Probe: Periodic checks to ensure app health.
  • Environment Variables:
    • DB_HOST, FLASK_ENV, PORT.
    • Secrets injected as env vars (e.g., DB_PASSWORD).

4.2. Database & Storage (sql.tf, secrets.tf, storage.tf)​

  • Cloud SQL:
    • Discovery: Uses scripts/core/get-sqlserver-info.sh to find existing SQL instances.
    • Connection: Supports Unix Socket (via enable_cloudsql_volume = true) or TCP IP.
    • Security: Password generated via random_password and stored in Secret Manager.
  • Initialization (jobs.tf, sample.tf):
    • Defines an initialization_jobs block in sample.tf.
    • Job: db-init uses postgres:15-alpine.
    • Script: scripts/sample/db-init.sh waits for the DB, checks/creates the user, and creates the database.
    • Execution: Runs via local-exec trigger on Terraform apply.

4.3. Networking (network.tf)​

  • VPC Discovery: Uses scripts/core/get-network-info.sh to identify the VPC and Subnets.
  • Connector: Relies on an existing Serverless VPC Access Connector for egress.

5. Existing Features​

  1. Wrapper Architecture: Seamlessly inherits platform best practices while allowing custom application logic.
  2. Automated DB Init: "Day 0" operations (DB creation, User creation) are automated via Cloud Run Jobs.
  3. Secure Secrets: No hardcoded passwords; all sensitive data is in Secret Manager.
  4. Custom Builds: Integrated support for building containers from source (Dockerfile) or uses upstream images.
  5. Observability: Built-in support for Startup/Liveness probes.
  6. CI/CD Hooks: Infrastructure-as-Code includes triggers for Cloud Build (trigger.tf).

6. Potential Enhancements​

6.1. IAM & Security​

  • Granular Access: Expose a variable to restrict roles/run.invoker to specific groups instead of allUsers.
  • Workload Identity: strictly enforce Workload Identity Federation for any external integrations.

6.2. Configuration​

  • CDN/Load Balancing: Integration with Global Load Balancer (Cloud CDN) for static asset caching.

6.3. Operational​

  • Readiness Probes: Add a distinct readiness probe (e.g., checking DB connectivity) separate from liveness.
  • Structured Logging: Ensure the Flask app emits JSON-formatted logs for better parsing in Cloud Logging (currently uses standard stdout).
  • Alerting: Create specific alert policies for high error rates or latency in monitoring.tf.
